衰減控制器

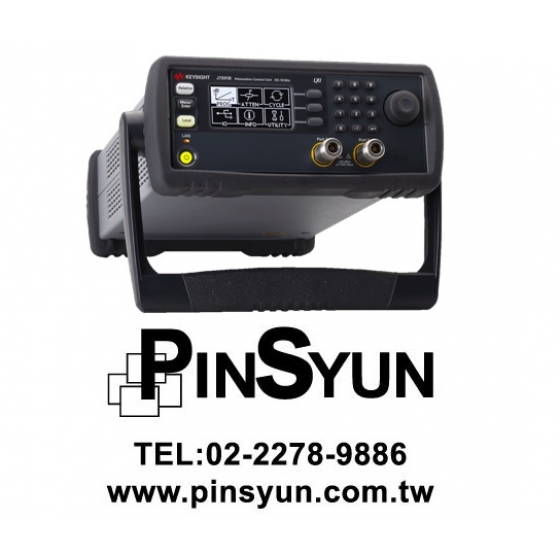

J7201B 衰減控制裝置, DC-18GHz, 0-121dB, 1dB steps [取代J7211B]

DC to 18 GHz, 0 to 121 dB, 1 dB steps

J7201B 可取代取代J7211B / 現可支援



庫存: 來電洽詢

J7201B 衰減控制裝置    產品型錄

主要特點

keysight J7201B 衰減控制器, 可取代已停產的J7211B

推薦使用直流至 18 GHz,衰減0 至 121 dB, 1dB步進的 J7201B衰減器, 專為 WLAN 和 WiMAX™ 設備製造測試、手機基站收發器 (BTS) 切換測試而設計

Keysight J7201B主要特色

- Attenuation sweep function – define the sweep time, number of cycles and step size for your application
- Relative attenuation step function - set attenuation relative to any value
- Attenuation steps - 0 dB to 121 dB, 121 dB to 0 dB, or back and forth for the preset number of cycles (1 to 1000)
- User selectable sweep time - 50 ms to 10 s; 50 ms incremental

Keysight J7201B主要規格

- 0.03 dB insertion loss repeatability per section for the entire 5 million cycles
- Excellent attenuation accuracy and flatness

Remote Control and Programming

- LXI Class C compliant for easy remote integration

* 延伸閱讀:查看其他衰減器
* 延伸閱讀:查看其他RF設備

Keysight J7201B 適用於無線通信的集成衰減解決方案

Keysight J7201B attenuation controls unit provide an integrated solution for R&D and manufacturing engineers in wireless communication, aerospace and defense and electronic component industries. Operating from DC to 18 GHz, the J7201B provides attenuation up to 121 dB with a 1 dB step size. A unique attenuation sweep function lets you select start/stop attenuation, step size, dwell time and number of cycles of for your application. J7201B offers exceptional < 0.03 dB insertion loss repeatability typical per section for the entire 5 million cycles which reduces your cost of ownership.

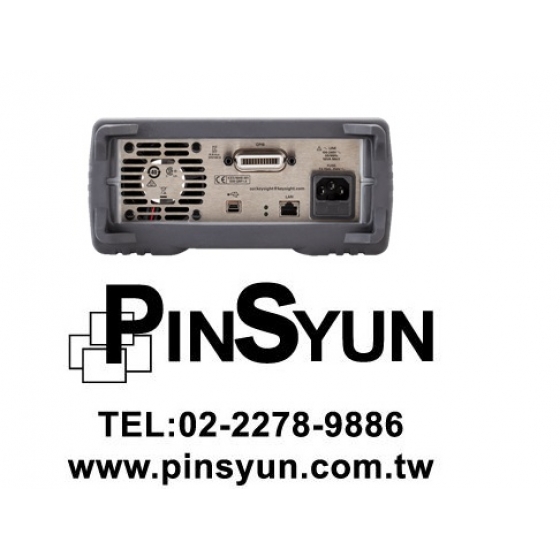

Designed in a compact half-rack, 2 unit high form factor, the Keysight J7201B ensures ease-of-use in benchtop applications and greater efficiency and throughput in ATE testing. GPIB, USB and LAN connectivity (LXI Class C Compliant) allow easy remote control and triggering.

Keysight J7201B Typical Applications

J7201B attenuation control unit’s attenuation sweep function makes it ideal for designing, validating and manufacturing WiMAX™ and WLAN components and for mobile handset base transceiver station (BTS) handover test.




* 延伸閱讀:查看其他衰減器
* 延伸閱讀:查看其他RF設備

庫存量: 來電洽詢
