X 系列信號分析儀/頻譜分析儀
N9081EM0E Bluetooth® 量測應用軟體,適用於 CXA [可取代W9081A]

N9081EM0E Bluetooth® 量測應用軟體,適用於 CXA [可取代W9081A]
庫存: 來電洽詢

Keysight N9081EM0E Bluetooth® 量測應用軟體,適用於 CXA [可取代W9081A]

目前W9081A Bluetooth® 量測應用軟體已停產,取代產品為PathWave X 系列量測應用軟體的N9081EM0E ,歡迎右下角洽詢小編

* Keysight N9081EM0E Bluetooth® 量測應用軟體

  • Complies with Bluetooth« Core Specification Version 2.1+ EDR, Low Energy (4.0 and 4.2), Bluetooth 5, 5.1/5.2/5.3c, and Channel Sounding (6.0 as Draft)
  • Support Qualcomm® Bluetooth High Speed Link (QBHSL) format with N9081SP1E license
  • Support transmitter analysis of combined output power (Basic Rate or Low Energy) or EDR relative power and modulation measurements associated with multiple results at a single time
  • Spectrum measurement: output power, output spectrum bandwidth, adjacent channel power and EDR in-band spurious emissions etc.
  • Modulation analysis: deviation, initial carrier frequency tolerance (ICFT), carrier frequency drift, EDR frequency stability and EDR modulation accuracy etc.
  • Performance: output power accuracy up to 0.20 dB; FM deviation range 250 kHz full scale (nominal); EDR modulation accuracy: 1.2%
  • Support multi-touch user interface and SCPI remote interface programming
  • KeysightCare software support subscription included
  • Keysight supports tiered application models with N-models for UXA/PXA/PXE, E-models for MXA/EXA/MXE/VXT, and W-models for CXA. The higher tiered application models can run at the lower platforms, which means N-models can run on all platforms, E-models can run on MXA/EXA/MXE/VXT and CXA, and W-models can only run on CXA

** 目前W9081A Bluetooth® 量測應用軟體已停產,可由N9081EM0E PathWave X 系列量測應用軟體取代,歡迎右下角洽詢小編 **

* 延伸查看:查看可搭配本軟體使用的主機 CXA系列信號分析儀/頻譜分析儀
* 延伸查看:[技術文章] 使用頻譜分析儀執行EMI相符性量測與克服現場測試時微波干擾信號挑戰

Bluetooth RF transmitter measurements and the corresponding measurements in N9081EM0E.

Bluetooth transmitter tests Identifier2 N9081EM0E X-Series
measurement application
Basic rate

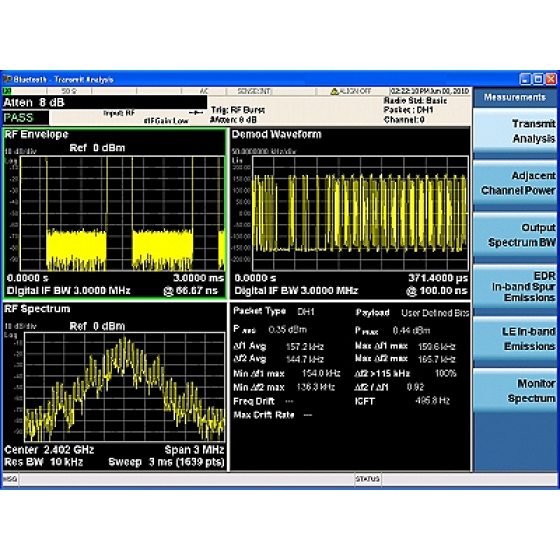

Output power TRM/CA/01/C Transmit analysis
Tx output spectrum –20 dB bandwidth  TRM/CA/05/C Output spectrum bandwidth
Tx output spectrum – adjacent channel power TRM/CA/06/C Adjacent channel power
Modulation characteristics TRM/CA/07/C Transmit analysis
Initial carrier frequency tolerance TRM/CA/08/C Transmit analysis
Carrier frequency drift TRM/CA/09/C Transmit analysis
Enhanced data rate (EDR)
EDR relative transmit power TRM/CA/10/C Transmit analysis

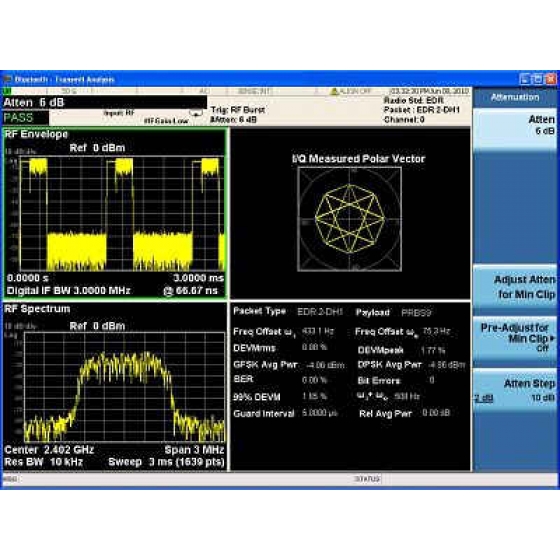

EDR carrier frequency stability and modulation accuracy TRM/CA/11/C Transmit analysis
EDR differential phase encoding TRM/CA/12/C Transmit analysis

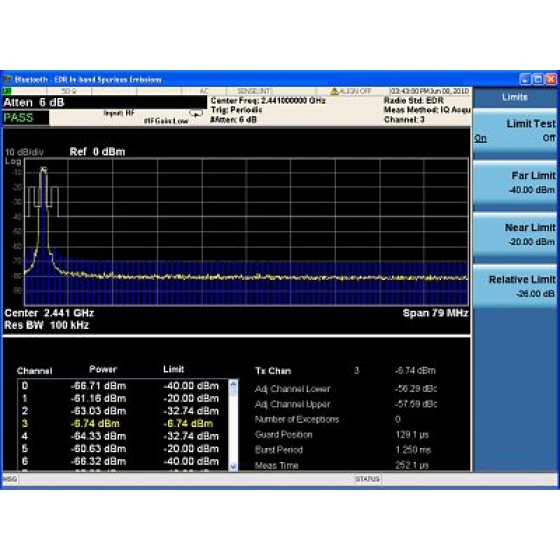

EDR in-band spurious emissions TRM/CA/13/C EDR in-band spurious emissions
Low Energy (LE) or Ultra Low Power (ULP)

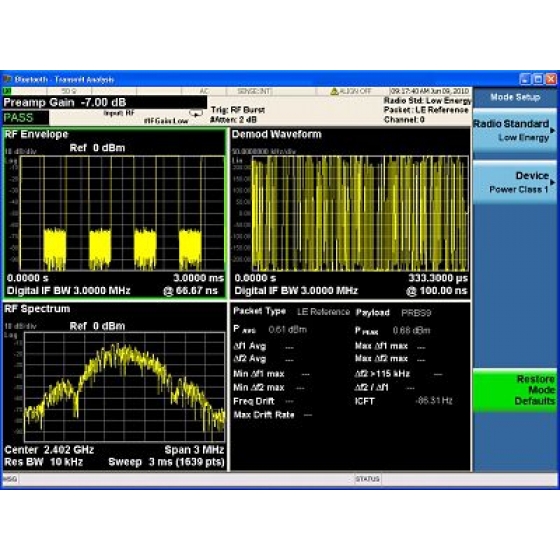

Output power at NOC TRM-LE/CA/01/C Transmit analysis
Output power at NOC TRM-LE/CA/02/C Transmit analysis
In-band emission at NOC TRM-LE/CA/03/C LE in-band emission
In-band emission at NOC TRM-LE/CA/04/C LE in-band emission
Modulation characteristics TRM-LE/CA/05/C Transmit analysis
Carrier frequency offset and drift at NOC TRM-LE/CA/06/C Transmit analysis
Carrier frequency offset and drift at NOC TRM-LE/CA/07/C Transmit analysis
