X 系列信號分析儀/頻譜分析儀
N9077EM0E WLAN 802.11a/b/g/j/p/n/af/ah 量測應用軟體,多點觸控 UI

N9077EM0E WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application, Multi-Touch UI
N9077EM0E WLAN 802.11a/b/g/j/p/n/af/ah 量測應用軟體,多點觸控 UI

庫存: 來電洽詢
主要特點

Keysight N9077EM0E WLAN 802.11a/b/g/j/p/n/af/ah 量測應用軟體,多點觸控 UI

推薦使用N9077EM0E應用軟體來根據 IEEE WLAN 802.11 標準定義的通過/不通過測試,對 WLAN 802.11a/b/g/j/p/n/af/ah 發射器執行單鍵式量測

* Keysight N9077EM0E

- 根據標準定義的通過/不通過測試,執行 WLAN 802.11a/g、802.11b/g DSSS/CCK/PBCC、802.11g DSSS-OFDM、802.11n 20 MHz 和 40 MHz 信號(HT-Mixed、HT-Greenfield、Non-HT)、802.11af、802.11ah、802.11p 標準相符性量測

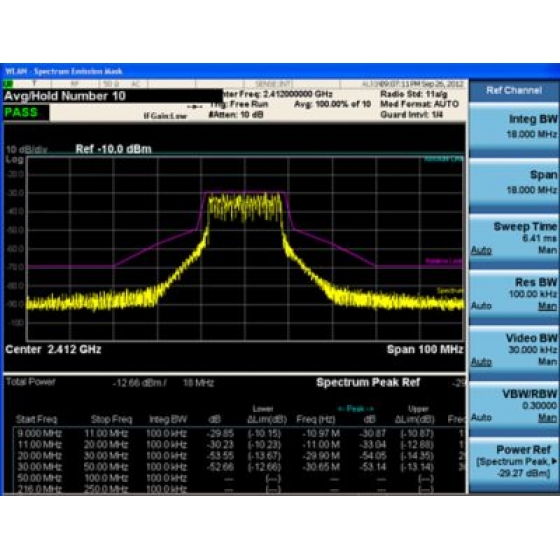

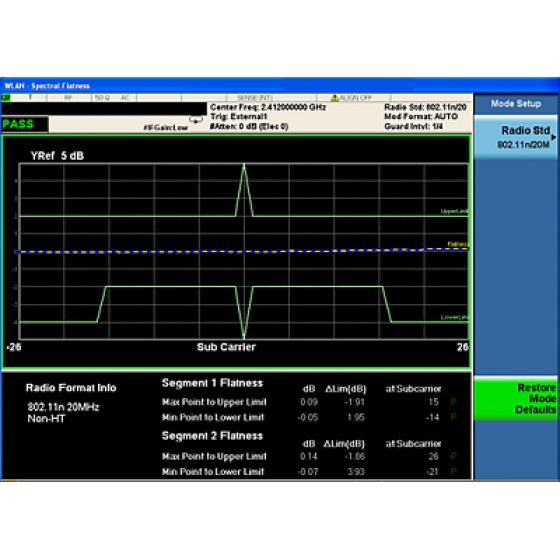

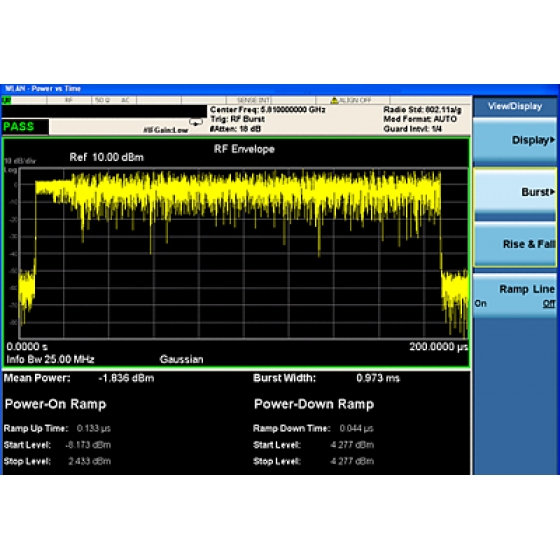

- 頻譜與功率量測:通道功率、SEM、OBW、CCDF、突波放射、功率與時間、頻譜平坦度

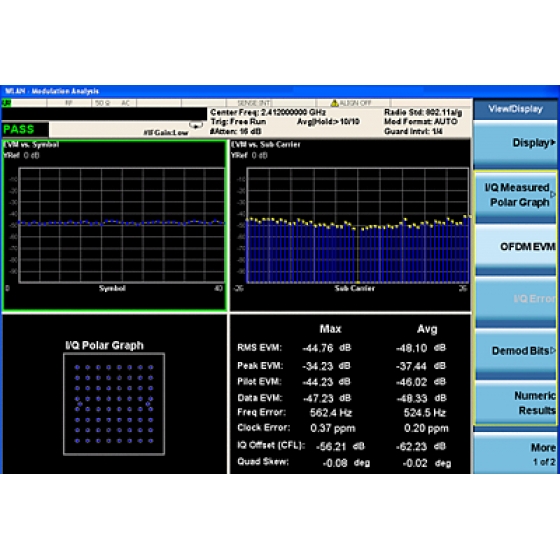

- 調變分析量測:星座圖、EVM、EVM 與符號、EVM 與子載波、叢發與信號資訊、數值結果,以及解調變位元等
- 效能:EVM 底線:高達 -53 dB(0.23%)(標稱值);絕對功率:高達 0.19 dB(95% 可信度)
- 支援多點觸控操作介面和 SCPI 遠端介面程控
- 是德科技支援分級式應用型號,包括 UXA/PXA/PXE 的 N 型號、MXA/EXA/MXE/VXT 的 E 型號,以及 CXA 的 W 型號。 較高層級的應用型號可在較低層級的平台上運作,也就是說,N 型號可在所有平台上運作,E 型號可在 MXA/EXA/MXE/VXT 和 CXA 上運作,而 W 型號只能在 CXA 上運作

* 軟體詳細資訊

信號與頻譜分析儀桌上型/模組化/手持式韌體更新中心


WLAN 802.11a/b/g/j/p/n/ac/af/ah/ax/be Measurement Application
The WLAN measurement application transforms the X-Series signal analyzers into IEEE 802.11 standard-based WLAN transmitter testers by adding fast, one-button RF conformance measurements that will help you design, evaluate, and manufacture your WLAN transmitter. The software’s capabilities are further enhanced because it is closely aligned with the IEEE standards ― including 802.11a/b/g/j/p/n/ac/af/ah/ax/be — allowing you to stay on the leading edge of design and manufacturing challenges.

Real-time spectrum analysis for WLAN 802.11
Adding real-time spectrum analysis to a PXA or MXA signal analyzer addresses the measurement challenges associated with dynamic RF signals such as bursted packet transmissions of WLAN, and to identify interference caused by various signals in the ISM (2.4 GHz, 5 GHz, or 7 GHz) bands.
- Accurately observe power changes for an 802.11 signal within a 320 MHz real-time bandwidth
- Capture random interfering signals with durations as short as 3.57 µs in ISM bands for WLAN signals
- Perform fast, wideband measurements without compromising EVM, ACPR and other RF measurements
- Enhance dynamic range with 1-dB variable attenuation (< 3.6 GHz) and fine-adjustable resolution bandwidths
Ordering Information
Flexible licensing and configuration
• Perpetual: License can be used in perpetuity.
• Subscription: License is time limited to a defined period, such as 12-months.
• Node-locked: Allows you to use the license on one specified instrument/computer.
• Transportable: Allows you to use the license on one instrument/computer at a time. This license may be transferred to another instrument/computer using Keysight’s online tool.
• Floating: Allows you to access the license on networked instruments/computers from a server, one at a time. For concurrent access, multiple licenses may be purchased.
• USB portable: Allows you to move the license from one instrument/computer to another by end-user only with certified USB dongle, purchased separately.
• Software support subscription: Allows the license holder access to Keysight technical support and all software upgrades

WLAN 802.11a/b/g/j/p/n/af/ah measurement app (N9077EM0E)
WLAN 802.11ac/ax measurement app (N9077EM1E)
WLAN 802.11be measurement app (N9077EM2E)
