InfiniiVision 3000T X 系列示波器

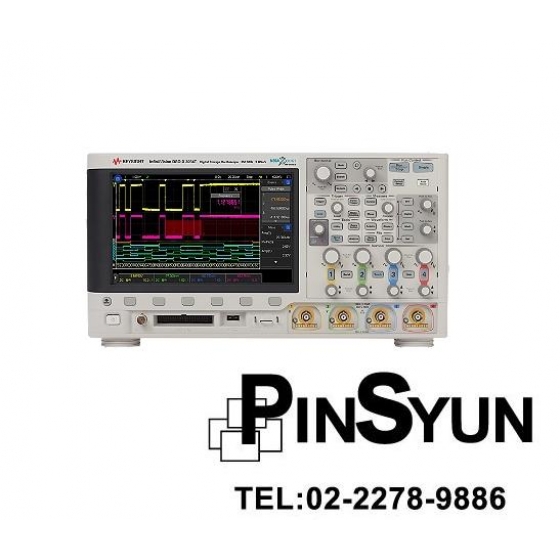

DSOX3022T 示波器:200 MHz,2 個類比頻道

頻寬200MHz ,通道數2CH, 可升級邏輯分析功能

Video Preview

庫存: 來電洽詢
主要特點

Keysight DSOX3022T 示波器:200 MHz,2 個類比頻道

推薦頻寬200MHz,兩個類比通道的數位示波器,最高可原機頻寬升級至1GHz的DSOX3022T示波器

Keysight DSOX3022T主要特色與功能

- 頻寬高達200 MHz (最高可升級到1GHz)
- 2 個類比通道(可升級16個數位通道)
- 8.5 吋大型觸控螢幕,讓您能一目了然地查看並分析信號
- 獨一無二的區域觸控觸發功能,可在短短幾秒內隔離信號
- 每秒 1,000,000 個波形的更新率讓您能查看更多信號細節
- 4 Mpts 記憶體可擷取更多資料(標配分段式記憶體功能)
- 全面的可升級特性方便您擴充量測功能:您可隨時添加頻寬、20 MHz 任意波形產生器、3 位數電壓錶、串列觸發與分析、分段記憶體和遮罩測試等



2022年度全新推出InfiniiVision 3000G系列示波器,標配任意波型產生器、頻率響應分析功能!


* 延伸查看:查看其他 3000T 系列示波器
* 延伸查看:查看螢幕更大 4000X 系列
* 延伸查看:示波器白皮書
* 延伸查看:可搭配的探棒

* Keysight DSOX3022T規格

如需更多資訊:查閱技術規格書

頻寬 200 MHz (最高可升級到1GHz)
通道數 2 (類比通道) + 可升級16個數位通道
最大的記憶體深度 4 Mpts
最大的取樣率 5 GSa/s
ADC 位元 8 bits

* Keysight DSOX3022T隨附的配件:

- 標準 3 年保固(被動式探棒等無序號配件提供 90 天保固)
- 每通道標配一支 N2843A 被動式探棒,500 MHz,10:1 衰減比
- 操作介面和內建輔助説明支援英文、簡體中文、繁體中文、捷克文、法文、德文、義大利文、日文、韓文、葡萄牙文、俄文、西班牙文、波蘭文、泰文和土耳其文
- 適用於不同國家的電源線和套板

*選配與選項

License
D3000GENA I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D3000AUTA CAN (symbolic with .dbc file), CAN FD (symbolic with .dbc file), LIN (symbolic with .ldf file), FlexRay, SENT, CXPI, PSI5 (user-definable Manchester), and Userdefinable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (CAN/CAN FD mask files available to download) and Frequency Response Analysis (Bode plots)
D3000AERA MIL-STD 1553 and ARINC 429 serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (standard mask files available to download), Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D3000PWRA Power quality, current harmonics, switching loss, transient response, turn-on/off time, output ripple, efficiency, loop response, PSRR, etc., plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode
D3000NFCA NFC trigger and PC-based automated test software
D3000BDLA I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis, NFC trigger & automated test software
DSOX3WAVEGEN WaveGen 20 MHz Function/Arbitrary Waveform Generator
DSOXT3SECA Disable non-volatile memory, USB, LAN, and firmware upgrades
DSOXLAN Plug-in module to support LAN and VGA connectivity
DSOXGPIB Plug-in module to support GP-IB connectivity
