被動式探棒Passive Probes
10074D 10:1, 150 MHz, 1.5 m被動式探棒

頻寬150MHz 衰減率10:1 耐壓400 Vpk

目前上市/現已支援

庫存: 來電洽詢
主要特點

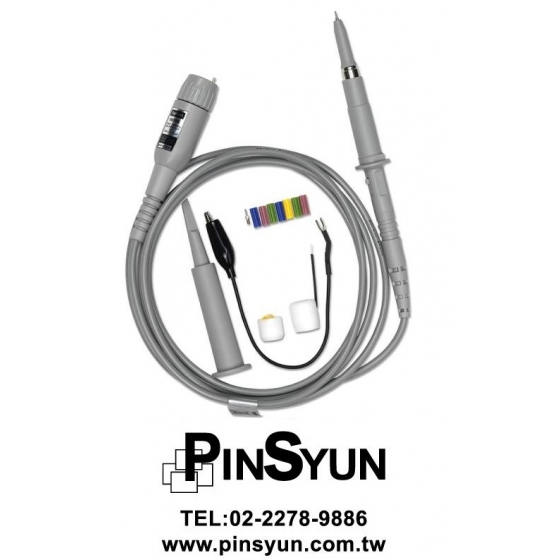

Keysight 10074D 10:1, 150 MHz, 1.5 m被動式探棒

推薦使用頻寬150MHz,衰減比10:1,長度1.5公尺的示波器被動探棒10074D

* Keysight 10074D 主要技術規格

- 上升速度: <2.33 ns
- 輸入阻抗: 10 MOhm; (when terminated into 1 MOhm;)
- 輸入電容: 15 pF (approximate)
- 電源隔離: 500 V CAT I
- Post receptacle mains: 400 V CAT II
- 補償範圍: 9-17 pF


* 延伸閱讀:查看其他示波器被動式探棒
* 延伸閱讀:查看其他探棒總覽
* 延伸閱讀:[技術文章]示波器探棒挑選大揭密/選購指南



The Keysight 10074D 150 MHz passive probe is a great choice if you are looking for high quality at a very reasonable price. This general purpose probe is designed specifically to give you optimal performance with your 2000X Series  and 3000T series 100 MHz models and 1000X Series oscilloscopes. Ruggedized for general purpose measurements, the 10074C features a durable cable and a solid stainless steel probe body encased with a hard, fracture-resistant plastic.

- General purpose retractable hook tip - hooks onto wires and test points for hands-free probing
- Ground bayonet - provides short, flexible ground lead for high-frequency measurements
- General purpose alligator clip ground lead - allows for versatile grounding
- Color tags (2 tags in each color: orange, white, blue and green) - by placing tags at both ends of the probe cable, you can quickly identify your probes

For complete details, click on the Probes and Accessories link
