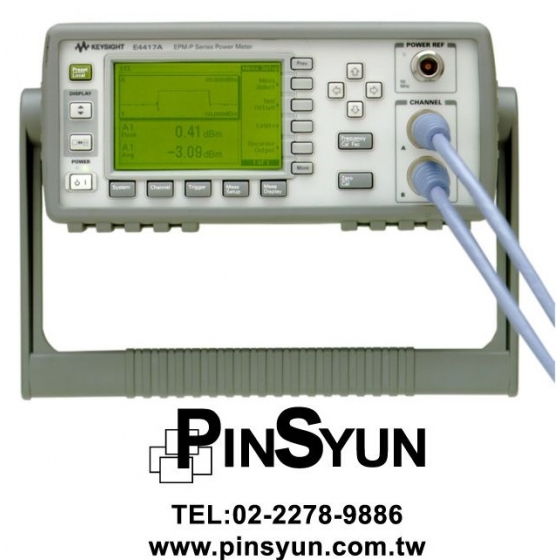

Keysight/Agilent 功率錶Power meter: E4417A EPM-P系列雙通道功率錶

Keysight E4417A EPM-P系列二頻道功率錶

EPM-P系列功率錶（E4416A和E4417A）並未提供43X程式碼相容性，因為它們主要鎖定時閘功率量測等新的應用。EPM系列功率錶（E4418B和E4419B）則有提供43X程式碼相容性，因為它們是436A、437B和438A的替代產品。

- 可執行峰值、平均及峰值-平均比等功率量測

- 時閘功率量測

- 透過GPIB每秒最多可提供1,000個修正讀值

- 每秒20 Msamples的取樣速率，可對寬頻信號執行可靠的連續與單擊量測

- 與所有的8480和E系列功率感應器相容

- 免費提供 'Analyzer Software' 軟體，以執行完整的脈衝和統計分析，此軟體位於資料圖書館

- 8個預先定義的無線配置（GSM、EDGE、NADC、iDEN、Bluetooth、IS-95 CDMA、W-CDMA和cdma2000）

- 1年的標準保固

- 如需更詳細的資訊，請點選規格資料連結。

E4417A-002	Parallel rear panel sensor input connectors and front panel reference calibrator connector
E4417A-003	Parallel rear panel sensor input connectors and rear panel reference calibrator connector
E4417A-004	Delete power sensor cable
E4417A-005	Include power sensor cable, E9288A length 5-ft (1.5m)
E4417A-0B1	English language user and installation guide; printed
E4417A-0B3	English language service manual, printed
E4417A-0BF	English language programming guide
E4417A-0BK	English language user and programming guide, printed
E4417A-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
E4417A-908	Rackmount kit (one Instrument)
E4417A-909	Rackmount kit (two instruments)
E4417A-A6J	ANSI Z540-1-1994 Calibration
E4417A-ABJ	Japan - Japanese user guide and English programming guide, printed
E4417A-E01	Bundle of a E4417A, two E4413A and transit case
E4417A-E02	Bundle of a E4417A and two E9327A
34131A	Transit case for half-rack 2U high instruments (e.g., 34401A)
34141A	Yellow soft carry/operating case
34161A	Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc.
E4416A-CD1	Documentation Optical Disk
E9288A	Sensor cable 1.5m/5ft (E9288A)
E9288B	Sensor cable 3m/10ft (E9288B)
E9288C	Sensor cable 10m/31ft (E9288C)
