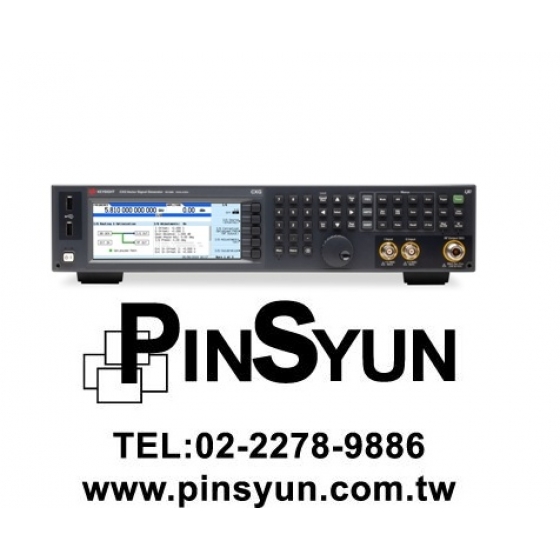

N5166B CXG RF向量信號產生器VSG
IoT / LoRa 量測好幫手!
克服LoRa設備RF測量挑
【技術資料】手把手教您用X-系列信號源產生IoT向量信號
* 延伸閱讀：[技術文章]物聯網(IoT)產品的研發測試整體方案
* 延伸閱讀：[技術文章] 物聯網(IoT)測試解決方案_智慧城市
* 可搭配使用的頻譜分析儀/信號分析儀
>> HSA 手持式頻譜分析儀
>> N9000B CXA 信號分析儀，多點觸控，9 kHz 至 26.5 GHz
* 查看其他射頻相關儀器: RF相關儀器總覽
規格
如需更多資訊: 查閱技術規格書
| 頻率 | 9 kHz 至 3/6 GHz |
|---|---|
| 效能等級 | ◆◆◇◇◇◇ |
| 1 GHz時的輸出功率 | +18 dBm |
| 1 GHz、20 kHz偏移時的相位雜訊 | -119 dBc/Hz |
| 頻率切換 | < or equal to 5 ms, typical |
| 1 GHz 時的諧波 | < -35 dBc |
| 內部和外部IQ調變頻寬 | Internal 60/120 MHz 至 External 200 MHz |
| 1 GHz時的非諧波 | -72 dBc |
| 掃頻模式 | - List - Step |
| 基頻產生器模式 | Waveform Playback |
| 一般軟體 | - Analog I/Q Input - I/Q Waveform - MATLAB - Multitone - Pulse - Custom modulation - (Support waveform playback with 5-pack or 50-pack) |

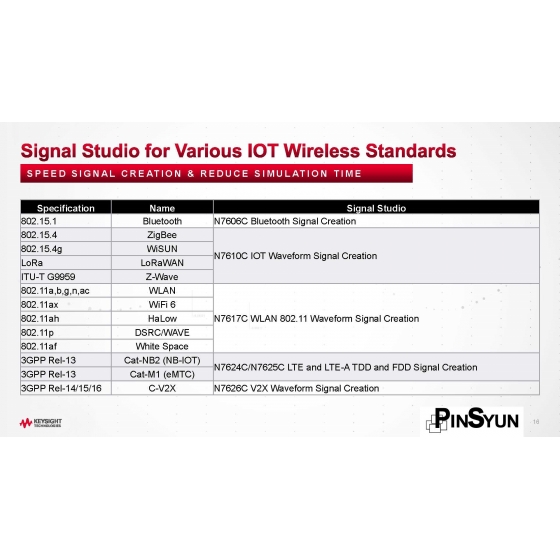

| 蜂巢式/無線連接軟體 | - Bluetooth - cdma2000®/1xEV-DO - GSM/EDGE/Evo - loT(物聯網) - LTE/ LTE-Advanced FDD and TDD - Mobile WiMAX™ - TD-SCDMA/HSPA - W-CDMA/HSPA+ - WLAN 802.11a/b/g/j/p/n/ac/ah/ax - Pre-5G - 5G NR - (Support waveform playback with 5-pack or 50-pack) |
| 音效/視訊廣播軟體 | - Broadcast radio - Digital video - (Support waveform playback with 5-pack or 50-pack) |
| 偵測/定位/追蹤/導航軟體 | Global Navigation Satellite System |
| 波形播放記憶體 | 512 Msa |
| 1 GHz 時的最大頻率調變偏移 | 10 MHz |
| 100 kHz 偏移時的頻率調變率 | DC to 7 MHz |
| 正常模式下最大相位調變偏移 | n/a |
| 高頻寬模式下最大相位調變偏移 | n/a |
| 最大振幅調變深度 | 100% |
| 調幅調變率 | 0 to 50 kHz |
| 可用的應用軟體 | 是 |
| 向量 | 是 |
想收到第一手消息？立刻訂閱電子報！
| 1CN106A | Handle kit 88.1mm H (2U) - two front handles, Palette 2015 |
| 1CP104A | Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs, Palette 2015 |
| 1CR112A | Rack Slide Kit, Mounting lengths 279.4-406.4mm, Palette 2015 |
| 1CM110A | Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs, Palette 2015 |
>> HSA 手持式頻譜分析儀
>> N9000B CXA 信號分析儀，多點觸控，9 kHz 至 26.5 GHz
* 查看其他信號產生器: Keysight/Agilent(原安捷倫) 信號產生器(信號源)_Signal Generator
- 選購 & 配置指南
>> N5166B CXA RF Vector Signal Generator - Configuration Guide
