InfiniiVision 4000X系列示波器
MSOX4052A 混合信號示波器:500 MHz,2 個類比通道和 16 個數位通道
混合信號示波器:500 MHz,2 個類比通道和 16 個數位通道
Video Preview

庫存: 來電洽詢
主要特點

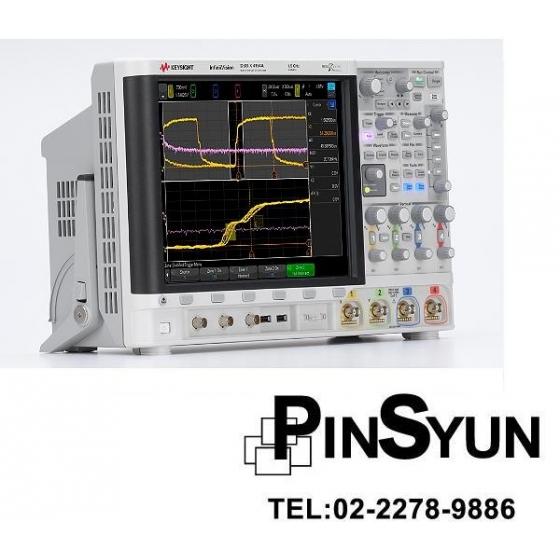

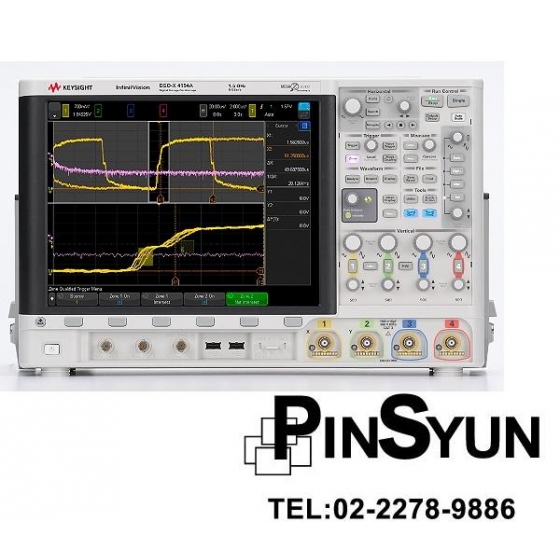

Keysight MSOX4052A 混合信號示波器:500 MHz,2 個類比通道和 16 個數位通道

推薦具有獨家的區域觸控觸發功能的MSOX4052A混合信號示波器,可在短短幾秒內隔離信號,12.1 吋大尺寸電容式觸控螢幕,可選配添加雙通道20MHz任意波型產生器

* Keysight MSOX4052A主要特色與功能

- 頻寬: 500 MHz
- 2 個類比通道和 16 個數位通道
- 12.1 吋大尺寸電容式觸控螢幕,方便您輕鬆檢視信號
- 獨家的區域觸控觸發功能可在短短幾秒內隔離信號
- 4 Mpts 記憶體和標配的分段式記憶體可擷取更多資料
- 每秒 1,000,000 個波形的更新率讓您能清楚查看更多信號細節
- 提供全面的升級能力,您可隨時添加雙通道 20 MHz 任意 WaveGen、串列觸發與分析、遮罩測試、頻率響應分析、USB2.0測試等,以便輕鬆擴充量測功能

** 新品推薦:MSOX4052G 將更多進階功能(WaveGen、遮罩、FRA、串列解碼等)納入標準配置 **




* 更高頻寬的示波器:
- 頻率最高可達6GHz: InfiniiVision 6000 X 系列示波器
- 頻率最高可達8GHz: Infiniium S系列示波器(高解析度示波器)
- 通道數可升級的示波器:EXR系列多通道示波器(頻寬最高2.5GHz)
- 查看可搭配使用之探棒總覽

頻寬 500 MHz
通道數 2 + 16(數位通道)
最大的記憶體深度 4 Mpts
最大的取樣率 5 GSa/s
螢幕尺寸 12.1 inch capacitive touch
ADC 位元 8 bits
內建儀器(選配) 20 MHz 雙通道任意波型產生器
其他選配功能 - 串列訊號分析(I2C、SPI、USB2.0等)
- 功率分析(諧波、頻率響應分析等)

* 延伸閱讀:[技術文章]示波器探棒挑選大揭密/選購指南
* 延伸閱讀:示波器選購指南
* 通道數可升級的示波器:EXR系列多通道示波器(頻寬最高2.5GHz)
Software Application
D4000GENA Embedded Software Package: I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000AUTA Automotive Software Package: CAN, CAN FD, LIN, FlexRay, SENT, CXPI, PSI5 (User-definable Manchester), and User-definable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots)
D4000AERA Aero Software Package: MIL-STD 1553 and ARINC 429 serial trigger and decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000USBA USB Software Package: USB 2.0 Low-, Full-, & Hi-speed, USB PD trigger & decode, plus USB 2.0 Signal Quality Test, Measurement Limit Testing, Mask Limit Testing, and Frequency Response Analysis (Bode plots)

1. USB 2.0 hi-speed trigger & decode supported on ≥ 1-GHz models only.
2. USB 2.0 hi-speed signal quality tests supported on 1.5-GHz models only.
D4000PWRA Power Software Package: Power quality, current harmonics, switching loss, turn-on/off time, transient response, loop response, PSRR, & more, plus Measurement Limit Testing, Mask List Testing, Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode
D4000NFCA NFC Software Package: NFC triggering and PC-based NFC automated test software
D4000BDLA Ultimate Bundle Software Package: I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB 2.0 low-, full-, & hi-speed 1 , USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus USB 2.0 Signal Quality Test2, Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis, NFC trigger & automated test software
