X 系列信號分析儀/頻譜分析儀
N9063EM0E Analog Demodulation Measurement Application, Multi-Touch UI


Keysight N9063EM0E Analog Demodulation Measurement Application, Multi-Touch UI
庫存: 來電洽詢
主要特點

Keysight N9063EM0E Analog Demodulation Measurement Application, Multi-Touch UI

Perform transmitters with one-button analog demodulation measurements for AM, FM, PM and FM Stereo/RDS signals.

Keysight N9063EM0E

- Perform modulation analysis for AM, FM, PM and FM Stereo signals with information bandwidth
- Analyze analog modulated signals with a selection of detectors: Peak+, Peak-, (Pk-Pk)/2 and RMS
- Play the modulating signal over a speaker (sometimes referred to as "tune and listen")
- Supplies most complete set of post-demodulation filters

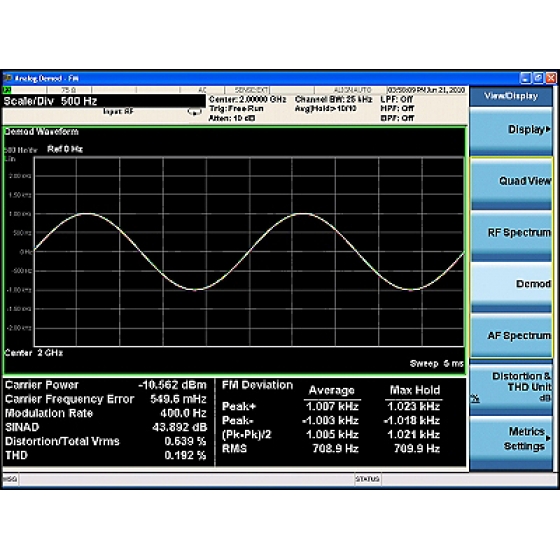

- Provide display modulation metrics such as AM depth, FM deviation, PM deviation, total harmonic distortion (THD), and signal to noise distortion ratio (SINAD), FM Stereo (left to right ratio, mono to stereo ratio, 38 kHz pilot frequency and phase error)

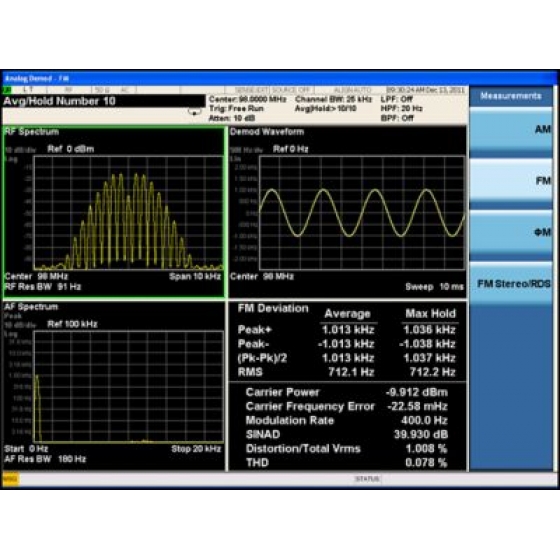

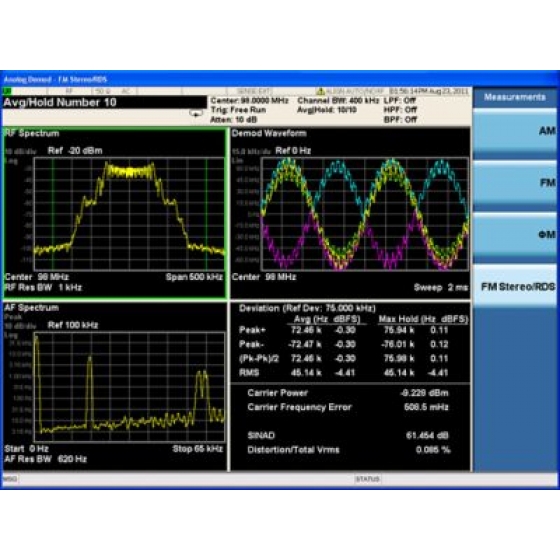

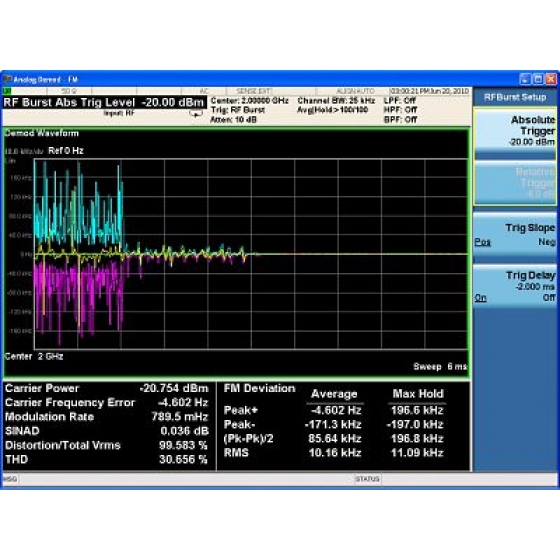

- Support view RF spectrum, demodulated waveform, AF (modulating signal) spectrum, and demodulation metrics table at the same time with quad view; view MPX, mono, stereo, left and right channel and RDS/RBDS decoding of FM stereo signal; view transmitter "attach/release" timing
- Performance
  • - AM depth accuracy: (0.1% x reading + 0.05%); AM rate accuracy: [(2.5 ppm x reading) x (100% / depth)]
  • - FM deviation accuracy: (0.3% x reading + 0.15% x rate); FM rate accuracy: (0.008% x reading)
  • - PM deviation accuracy: (0.1% x reading + 2 mrad); PM rate accuracy: (0.008 Hz / deviation + 0.003 Hz)
  • - FM Stereo SINAD up to 71 dB and left to right ratio up to 76 dB with CCITT filter
  • - Support multi-touch user interface and SCPI remote interface programming
  • - KeysightCare software support subscription included
Analog Demodulation Measurement Application

The analog demodulation measurement application transforms the X-Series signal analyzer into an easy-to use transmitter tester for analog modulated signals, including AM, FM, PM, and FM stereo. By adding fast, one-button measurements, the analog demodulation measurement application helps you design, evaluate, and manufacture your analog devices quickly and accurately. Even in the modern digital world, the analog demodulation measurement application helps you to troubleshoot distortions due to unintentional, analog modulation from digitally-modulated transmitters -- allowing you to stay on the leading edge of your design and manufacturing challenges.
N9063EM0E    Analog Demodulation Measurement Application

USB HostID Hardware Keys (Dongle)
E8900-D10      USB read-only licensing dongle - FLEX10
